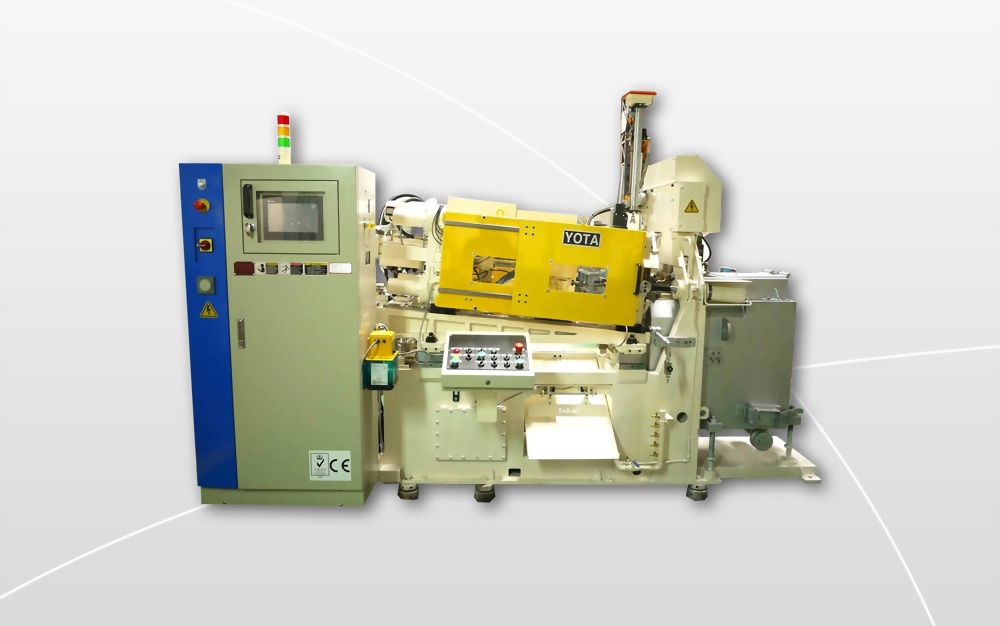

TAR 30Z - Hot Chamber Pressure Die Casting Machines

High response injection hydraulic circuit for top performance

Directly connect one piece design injection cylinder & accumulator. It get shortest path.Customer can get veryquick injection speed response & stable performance. The system provide injection stop function for exhaust thenozzle air before shot.It can improve the porosity problem & get a good surface casting part.
The large capcity piston type accumulator ,less pressure drop! More stable pressure during shot. Customer caneasy change shot start position , speed & pressure on the touch screen directly.
Customer can select close-loop injection control system for more accurated injection.(optional)
Model : TAR 30Z

High response injection hydraulic circuit for top performance

Directly connect one piece design injection cylinder & accumulator. It get shortest path.Customer can get veryquick injection speed response & stable performance. The system provide injection stop function for exhaust thenozzle air before shot.It can improve the porosity problem & get a good surface casting part.
The large capcity piston type accumulator ,less pressure drop! More stable pressure during shot. Customer caneasy change shot start position , speed & pressure on the touch screen directly.
Customer can select close-loop injection control system for more accurated injection.(optional)





●電動調模系統 - ELECTRICAL GEAR MOTOR DIE-HEIGHT ADJ SYSTEM.
●無線網路連結功能 - WIRELESS REMOTE OPERATION SYSTEM
●產品突落缸系統 - COMPONENT KNOCK DROP SYSTEM
●鎖模力及模溫顯示 - CLAMPING FORCE& DIE TEMPERTURE DISPLAY
●直結式高性能射出系統 - HIGH PERFORMANCE INJECTION HYDRAULIC SYS. (CLOSE-LOOP IS OPTIOANL)
●射數位化射出行程控制+一體成行射出缸 - DIGITAL INJECTION STROKE CONTROL +ONE PIECE FRAME INJECTION CYLINDER
●射出部冷卻流量計 - INJECTION SYS. COOLING WATER FLOW INDICATOR
●日本產燃燒機及PID - MADE IN JAPAN DIESEL BURNER & PID CONT TROL
●射出噴料安全防護板 - METAL FLASH PROTECTION COVER
●電氣射料管及鵝頸統 - PID ELECTRICAL NOZZLE & GOOSENECK HEATER SYSTEM
●數合乎人體工學的堅固防水操作箱 - COMFORTABLE & WATERPROOF OPERATION PANEL
●數位化押出行程控制 - DIGITAL EJECTOR STROKE CONTROL
●10时觸控螢幕+PLC控制器 - 10"INCH TOUCH SCREEN +PLC & PID CONTROL
●電子液壓液面及油溫控制 - HYDRAULIC FLUID LEVEL &TEMPERATURE CONTROL
●伺服節能油壓系統(選用) - ENERGY SAVING HYDRAULIC SYSTEM. (OPTIONAL)
●射出位置油壓升降座系統 - INJECTION POSITION HYDRAULIC LIFTER




射出性能曲線系統(標準配備功能)

Injection graphic system




料溫及射料管溫度曲線紀錄功能,可錄八天

Metal & nozzle body PID temperature control & curve recoder ,Max 8 days.




每模生產參數紀錄,生產追溯的利器

The monitoring & stroage of each shot casting parameters.




全數位化控制,使用方便,精密度高,可記憶

Fully digital parameter set, easy setting & memoriable.







熱室壓鑄機規格表
